Optical Fiber Taper Machine

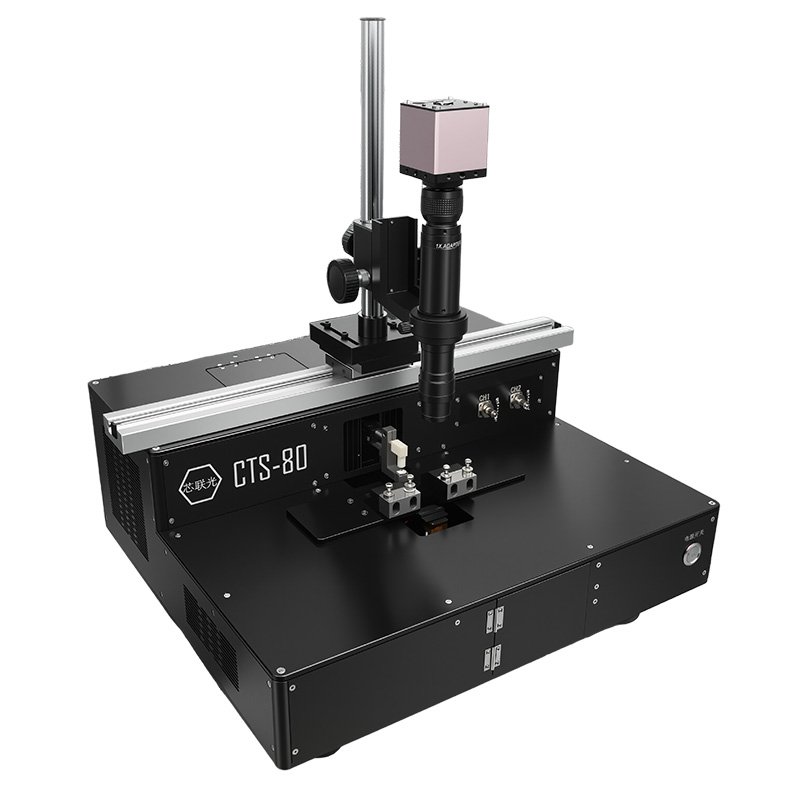

Flame Fiber Tapering System(CTS-80 Series)








Flame Fiber Tapering System(CTS-80 Series)

Product Description

The CTS-80 Series flame fiber tapering system is a cost-effective professional equipment for R&D and mass production of low-to-medium power fiber devices. Using oxy-hydrogen flame as the core heat source, it is suitable for fabricating (2+1)×1 pump fiber combiners, fiber mode matchers, micro-nano fibers, tapered couplers, tapered WDM devices and other fiber components. It supports fiber core expansion process to optimize mode field matching and coupling efficiency. The machine integrates tapering, packaging, and optical power monitoring in one unit, supports customized configurations, and is the preferred equipment for small-batch R&D and production in optical communication and fiber sensing fields.

Features

⚫ Unique burner design: H₂-up O₂-down / symmetric outer H₂ inner O₂

⚫ All-in-one process: tapering, spot-pull/spot-burn repair, cold tapering, packaging & curing

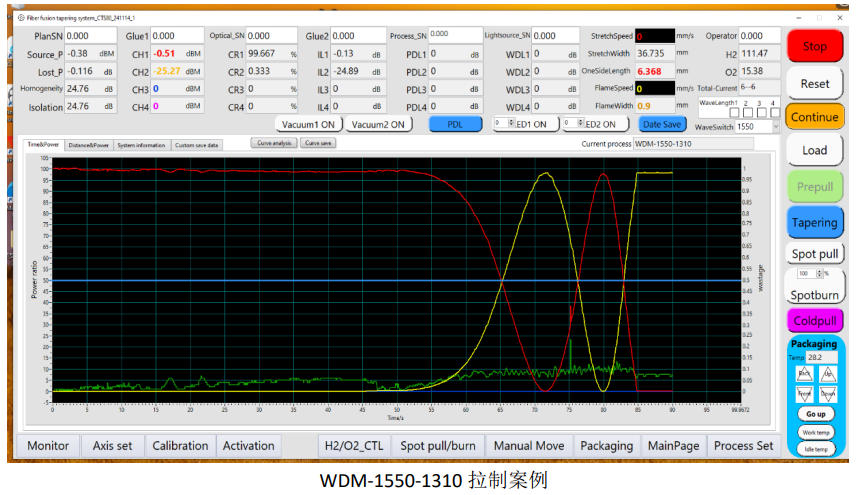

⚫ Real-time monitoring of all parameters

⚫ Support creation, saving and recall of tapering process templates

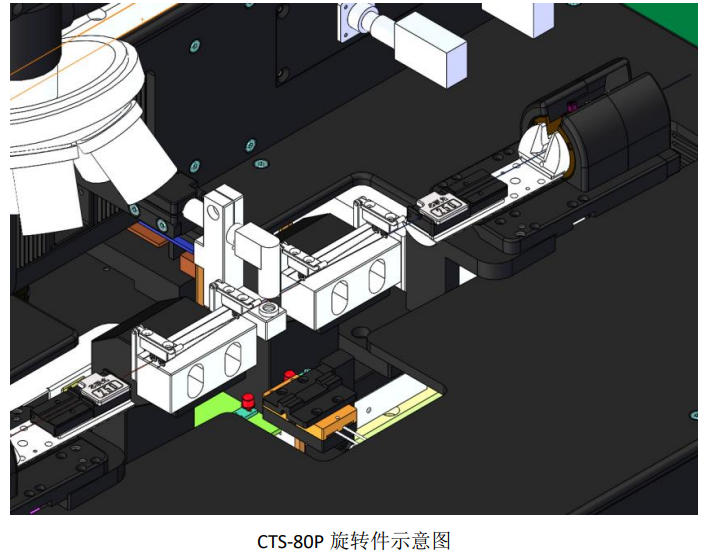

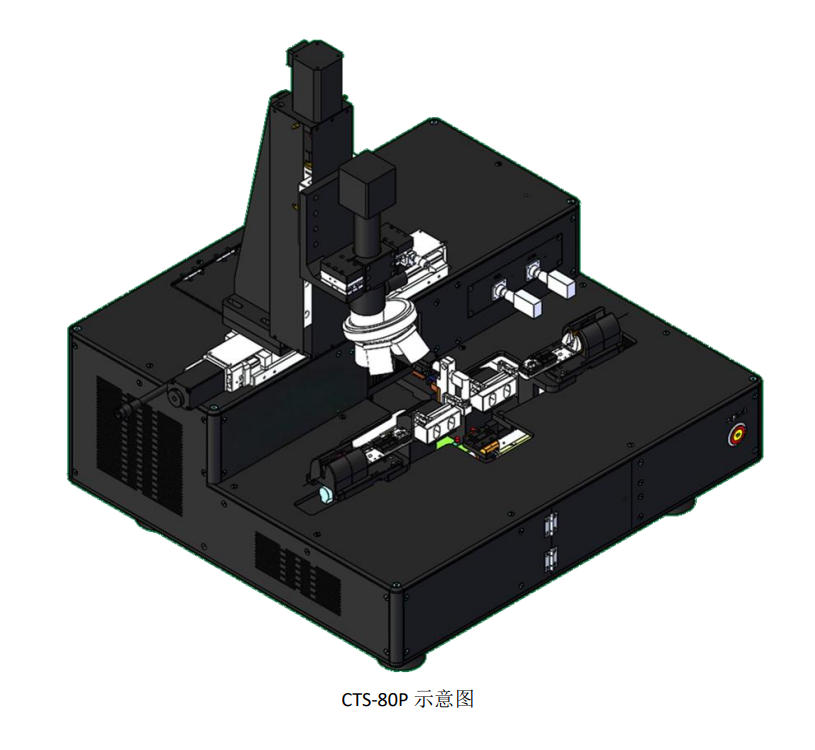

⚫ Motorized polarization-maintaining (PM) rotation (optional)


Specifications

Parameter

Unit

CTS-80

CTS-80P

Motorized PM rotation

 function

-

No

Yes

Rotation axis travel

°

-

360

Rotation axis accuracy

°

-

0.1

Tapering length

mm

20~80

Tapering displacement

 accuracy

um

±0.1

Applicable tapering

 wavelength

nm

Customizable

Stretching speed

 adjustment accuracy

mm/s

0.001

Flame scanning length

mm

0~40

Flame scanning accuracy

mm

±0.1

Flame movement direction

-

Reciprocating

Oxy-hydrogen pressure limit

MPa

H₂ ≤0.3, O₂ ≤0.1

Packaging curing

 temperature

℃

85~115

Operating humidity

%RH

0~95 (noncondensing)

Atmospheric pressure

Kpa

70~106

Power supply

V/Hz

AC110~220/50~60

Dimensions (L×W×H)

mm

458*530*192



Order Informotion

Model

Channels

Wavelength

Fiber Observation

Gas Accessory

Gas Accessory CTS-80 CTS-80P (Motorized  PM rotation)

 1=1

 2=2

 3=3

 4=4

 1=400~1100nm

 2=400~1700nm

 3=800~1700nm

 4=1500~3600nm

0=None

1=Long arm microscope

2=Electronic microscope

3=Industrial CCD

0=None

1=H₂ generator

2=Oxy-hydrogen  mixer



Standard Accessory List

Accessory

Model

Unit

Quantity

Flame Fiber Tapering System  (with PC)

CTS-80/CTS-80P

set

1

Optional V-groove fixture

(custom size)

pair

1

Optical power detector

/

channel

2

Oxy-hydrogen tube

/

meter

4

Oxy-hydrogen generator

/

unit

1

Certificate of Conformity

/

copy

1

Warranty Card

/

copy

1

User Manual

/

copy

1

Wooden packing case

/

piece

1
