3-Electrode Vacuum Fiber Tapering System(VTS-10)








3-Electrode Vacuum Fiber Tapering System(VTS-10)

Product Description

The VTS-10 series is dedicated to the R&D and production of ultra-high power signal combiners and pump combiners. The system adopts 3-electrode vacuum plasma arc heating technology, which utilizes pure analog modulation to quickly and linearly adjust the output high voltage for precise temperature control.


Features

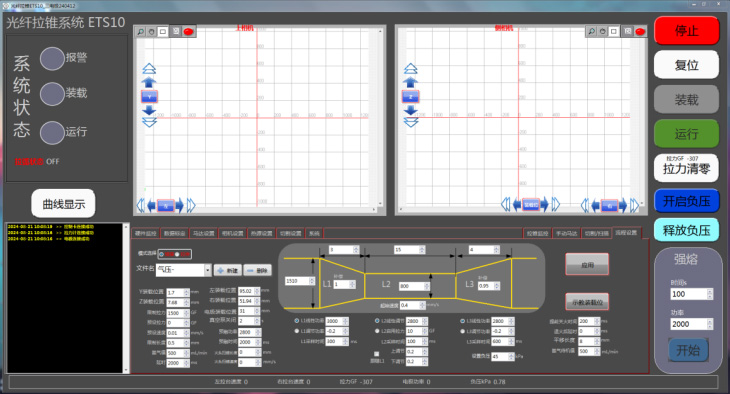

⚫ Dual CCD taper scanning and analysis

⚫ Real-time tension monitoring

⚫ Fine adjustment of taper profile

⚫ Adjustable negative pressure


Specification

Parameter

Unit

Specification

Tapering Length

um

0~100

Tapering Displacement Accuracy

um

±0.1

Electrode X-axis DisplacementLength

mm

0~60

Electrode Heating Power

W

 50~500

Tapering Direction

-

Left and Right

CCD Pixel

pix

500

Negative Pressure

kPa

0~70

Working Temperature

℃

23±2

Working Humidity

%RH

50~60

Power Supply

V/HZ

AC110~220/50~60

Working Current

A

0~40

Overall Dimension (L×W×H)

mm

715*530*320


Standard Accessories List

Accessory

Model

Unit

Quantity

3-Electrode Vacuum FiberTapering System (with PC)

VTS-10

set

1

Electrode rods

-

pair (3 pcs)

1

Fiber holder

FH-(Provide according tothe size request)

pair

1

Electrode cleaner

-

piece

1

Certificate of Conformity

-

copy

1

Warranty Card

-

copy

1

User Manual

-

copy

1

Wooden packing case

-

piece

1
